Cowboy competition SASS focused firearm parts.  The finest custom firearms parts for the cowboy action competitive shooter internationally recognized as SASS.

Uberti Rifle Parts

Competition Uberti Rifle Parts

New stock parts added below! Extractors, mainsprings, etc. Check them out!


Super Short Stroke Pictured

Super Short Stroke Pictured

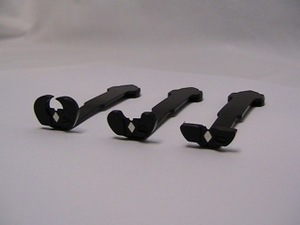

SHORT STROKE KITS, FOR UBERTI RIFLES



Standard Short Stroke Kit

Works in Uberti made Model 1866, Model 1873, and Henry Rifles. This is the short stroke kit that we have been making since 2004. The standard kit will shorten the lever throw of your stock Uberti rifle by 1 3/4" to 2". We have recently improved these kits by machining them from aircraft quality steel, welding the pivot pins in on both sides, and widening the bearing surface at the joint to add to the life of the toggle link assembly. For Uberti made rifles.

Short Stoke Kits

$170.00

Select Choice Here

How to modify your stock carrier to use with our kit



Short Stroke Kit, Super
The super kit will work in Uberti made Model 1866, Model 1873, and Henry rifles. This short stroke kit will decrease the lever throw of your rifle to just over the SASS legal minimum. Installation does not require the purchase of a new finger lever. The stock Uberti lever will work just fine. We have recently improved these kits by machining them from aircraft quality steel, welding the pivot pins in on both sides, and widening the bearing surface at the joint to add to the life of the toggle link assembly. For Uberti rifles.


Light weight lever and lifter arm spring assemblies for Uberti rifles.

$60.00

These action springs are machined from high strength steel and include a tension rod tuned to provide a light feeling action and reliable function. They are threaded to accept Uberti screws and PGW American made screws. Screws are not included. These will only fit Uberti made rifles.

ATTN: Critical Installation Step:       Before installing the Action Springs, make sure that the lever cam surface is smooth, polished, and without a sharp edge that could cause the pivot arm tip to wear.

ACTION SPRINGS

$60.00

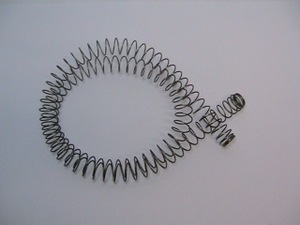

STAINLESS STEEL MAGAZINE SPRING

Stainless Steel Magazine Spring

Will work in model '66 & '73 rifles of any caliber.

These springs are made from stainless steel, and will help keep your magazine free from rust. Rust can mix with fowling and dirt, causing a failure to feed properly. They are made to fit a 24" barreled gun, so if you're shooting a rifle with a shorter barrel, leave about 3" sticking out the end of the magazine tube and cut the rest off.

Stainless Steel Magazine Spring

$15.00


Aluminum Carriers

Aluminum Carrier Small Caliber for Uberti Models:
Will work in Uberti made Model 1866, 1873, and Henry rifles.

Aluminum Carrier Large Caliber for Uberti Models:
Will work in Uberti made Model 1866, Model 1873, and Henry rifles. For 38/40 caliber and up.

ALUMINUM CARRIERS, UBERTI

$65.00

Select Caliber Here

Machined from aircraft quality 6061-T6 aluminum, these carriers weigh about 1/3 the weight of a brass carrier, and will lighten the feel of your rifle, particularly on the forward stroke of the lever. These will only fit Uberti rifles.


COIL MAINSPRING CONVERSION KITS, UBERTi

This coil mainspring conversion kit replaces the stiff flat mainspring that comes in Uberti made rifles. The forward strut mounts to the hammer by riding on two ball bearings that are free to roll up and down the inner curve on the back of the hammer.

Coil Mainspring Conversion Kit

$150.00

Select Model Here

This movement adjusts the leverage on the hammer, resulting in a constant tension on the hammer, from its full forward position to its fully cocked position. It will significantly reduce the effort required to work the action. Installation instructions are included.
The Model 66 kits are the same as the 73 kits. The difference is in the installation instructions.


FIRING PIN WITH SPRING, EXTRA LONG FOR UBERTI RIFLES

These firing pins are made from armory grade steel, and are made .015" longer than stock firing pins. Guaranteed not to break. They come with a light weight spring.

FIRING PIN W SPRING, UBERTI, EXTRA LONG

$20.00

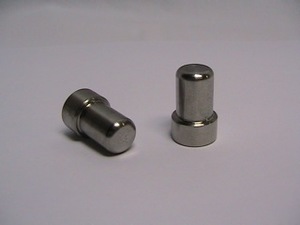

FIRING PIN EXTENSIONS, LT. WT. UBERTI

Light Weight Firing Pin Extension, Uberti Model 1866, 1873, Old & New Styles

This firing pin extension is made from steel, drilled from the front end to make it hollow, then plugged .

Firing Pin Extensions, LT. Wt.

$40.00

Select Style Choice
Select Model Choice

It weighs 40% less than the stock Uberti extension, and will allow reliable firing with a lightened hammer spring.

New style extensions are attached to the bolt with a metal wedge inserted from the bottom.  Old style extensions are attached tot he bolt with a horizontal pin inserted from the side.



MODEL 73 LEVER SAFETY SPRING

6.00

Model 73 Lever Safety Spring

These springs replace the heavy lever safety springs that come in Uberti model 73s. They will allow the safety to work as designed, without having to squeeze the lever against the stock.

MODEL 73 LEVER SAFETY SPRING

$6.00


MARBLES REAR SIGHTS LONG & Short SHANK

Marbles Rear Sights

These rear sights are a good replacement for other rifle sights, and come in flat top, semi buckhorn, or full buckhorn styles.

Long Shank:

MARBLES REAR SIGHTS LONG and Short SHANK

$25.00

Select Style Choice
Select Model Choice

MARBLES BRASS BEAD FRONT SIGHT

Marbles Brass Bead Front Sight

Made by Marble Arms, these front sights have a .093 brass bead, and come in several heights. The .41" height sights are kept in stock, and work with Uberti rear semi buckhorn sights.

MARBLES BRASS BEAD FRONT SIGHT

$15.00


SPEED SIGHTS - FRONT RIFLE

Speed-Sight Front Rifle Sight - Standard Height
As the name implies, this sight will allow you to speed up your sight acquisition by drawing your eyes and your attention to the front sight, where they should be. This sight has a spherical 1/8" diameter brass bead surrounded by a black outline that will show up on any color target. This sight is .410" tall, which works well with Uberti and Marbles rear sights.

SPEED SIGHTS - FRONT RIFLE

$30.00  Standard
$35.00 Tall

Select Choice Here

SPEED SIGHT, CARBINE BAND

Speed-Sight, Carbine Barrel Band with Screw

This is our Speed-Sight for carbines. We designed our own barrel band with the same 1/8" diameter spherical brass bead that's in our Speed-Sight for rifles. It reflects light to draw your attention to the front sight, where it ought to be. It now comes with our own American made heat treated replacement screw.

SPEED SIGHT, CARBINE BAND

$74.50


STAINLESS STEEL FOLLOWERS

Stainless Steel Follower, Small Caliber
Will work in Uberti made Model 1866 and Model 1873 rifles.

Stainless Steel Follower Large Caliber
Will work in Uberti made Model 1866 and Model 1873 rifles, 38/40 caliber and larger.

Made from stainless steel, these followers will help keep your magazine tube rust free. Rust can mix with dirt and fowling to cause improper feeding.

Stainless Steel Followers

$15 Small or Large Caliber

Select Caliber Here

1873 & 1866 Replacement Hardened Screws

American made hardened screws. These high quality screws are a drop in replacement for the soft Uberti screws. They will hold up to multiple loosenings and tightenings.

1873 Screw Set

$18 each set

Set consists of 1-lever screw, 1-side plate screw, and 2-action spring screws.


1866 Screw Set

$13.50 each set

Set consists of 1-'66 lever screw, 2-action spring screws.

Select Screw Choice Here

1873 or 1866 Screws

$4.50 per screw




leather wrapa.jpg

LEATHER LEVER WRAP

Leather Lever Wrap

This lever wrap is made of high quality leather, and has a padded area to cushion your knuckles and reduce the space in the lever loop. It comes with sinew and needles.

LEATHER LEVER WRAP

15.00

Note to seller

LEATHER BUTT COVERS Uberti

Made of high quality leather, this butt cover will keep the butt plate of your rifle from slipping on your shoulder during those fast shooting strings. It comes with installation instructions, sinew, and two needles.

LEATHER BUTT COVERS Uberti

$40.00

Select Choice Here
Note to seller

Looking for specific colors or designs? Not sure of the style or fit of a cover? Ask us about customizing your leather!

Cover styles:
1873 Uberti or Winchester-Miroku Rifle
1866 Uberti Rifle
1873 & 1866 Carbine

(Note: Some of the newest ‘73 rifle stocks from Uberti will use a ‘66 rifle cover.)

Not sure of the fit? For a correct fit our craftsman recommends using string to measure around the base of the butt-plate. Mark where the strings meet, unfold, and measure the length. Be sure to also measure six inches down from the top of the gun butt towards the sight. Send us those two measurements along with the model and year.  Preferences can be accommodated if the craftsman says he can do it but can add to delivery time. If you prefer other colors we can also arrange for that. Currently most of the butt ends are also rough side out for a better non-slip grip to the shoulder but not all are. If you have any concerns about fit email or call us anytime.

Limited quantities custom covers:
Charles Daly (2 available)

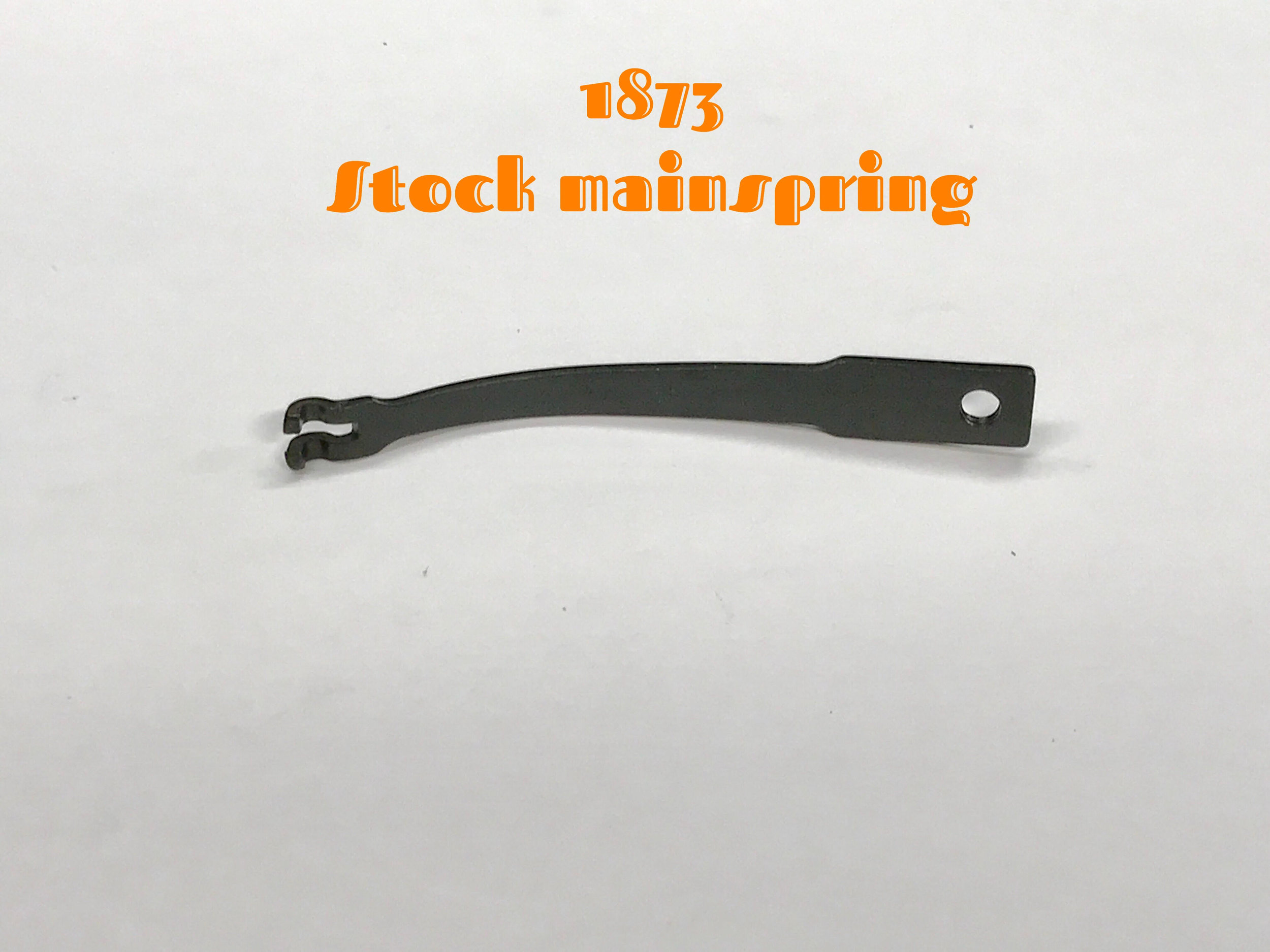

Uberti Mainspring

1866, 1873, Henry, Chaparral

$25 each



Uberti Right Lifter Spring

1866, 1873, Henry

$21 each


Uberti Left Lever Spring

1866, 1873, Henry

$21 each

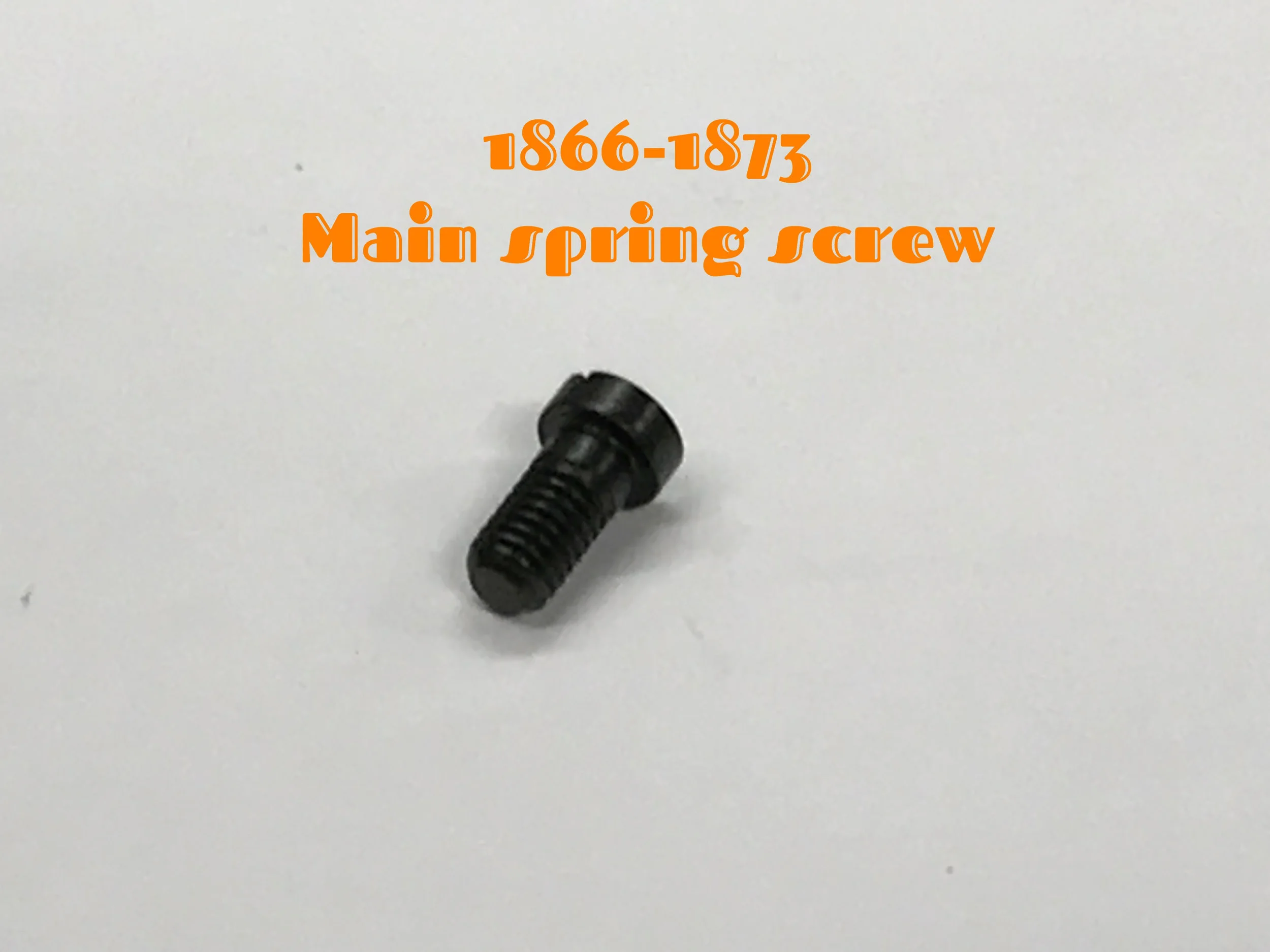

Uberti Main Spring Screw

$4.45 each

Hardened Uberti Main Spring Screw

$ 6.50 each


Extractor, '66 Uberti Large Caliber

$28.50 each


Extractor, '73 Uberti Large Caliber

$28.50 each


Extractor, '66 Uberti Small Caliber

$28.50


sm73 ext.jpg

Extractor, '73 Uberti Small Caliber

$28.50
